Product Description
1. More than 10 years professional manufacturer experience
2. Be designed according to your requirements
3. CCC/ISO9001 agreement
4.1 year quality guarantee term

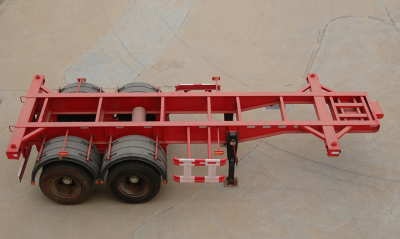

Specifications(skeleton semi trailer)
Tare Weight:About 5.1T
Dimension:12400mm*2500mm*1650mm
Loading Capacity (T):60 T
Axle:13 T FUWA Brand 3 pieces
Rim:9.0 12 pieces
Tire:12.00R22.5 12 pieces Triangle Brand
Suspension:Mechanical suspension (America Type)
Spring leaf:90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market )
King pin:2.0 inch
Support leg:28Tons
Main beam:Height: 500mm, upper plate is 14mm, middle plate is 8mm,Down plate is 16mm; Material is Q345B Steel.
Chamber:6 pieces T30/30 Spring brake chamber; one piece of 45L air tanks
ABS:With
Valve:WABCO valve
Light:LED light (especial for exporting market )
Voltage:24V
Receptacle:7 ways (7 wire harness)
Tool box:One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting:Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
WorkdaysAbout: 7 days
